Standard Accessories

  • One 4" suction nozzle
  • One 4" x 12' rubber suction hose
  • One 4" x 12' stainless steel discharge hose
  • One 4" discharge deflector

Optional Accessories

  • 2" & 3" rubber suction hose
  • Discharge cyclone
  • Remote shut off
  • Additional hose lengths and styles

 Downloads

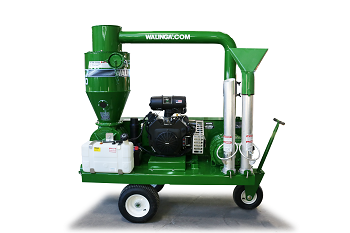

The 3510 AGRIVAC, equipped with a Walinga 510SRT blower, can move up to 10 tonnes/hour. Measuring less than 100cm wide, it can be used in the tightest corners to perform transfer, cleanup or loading operations. The 3510 moves grain on a cushion of air which maintains grain and seed quality.

The 3510 petrol, diesel and electric models are mounted on a formed steel, three wheeled cart, with fork-lift pockets making it very simple to move into the smallest corner of your storage area.

Available in efi petrol or diesel, electric or pto (with 3 point hitch), it is the ideal unit for someone who needs a versatile and portable grain handling unit.

Specifications

Weight 630 kgs
Height 195 cm
Width 100cm
Length 230 cm
Wheels 3 pneumatic (1 on swivel)
Frame Formed steel with forklift pockets
Motor/Power 26.5hp efi petrol (standard)
Receiver Rotatable one piece unit - single inlet
Inlet 4" daffin coupling with plug
Outlet 4" daffin coupling with plug
